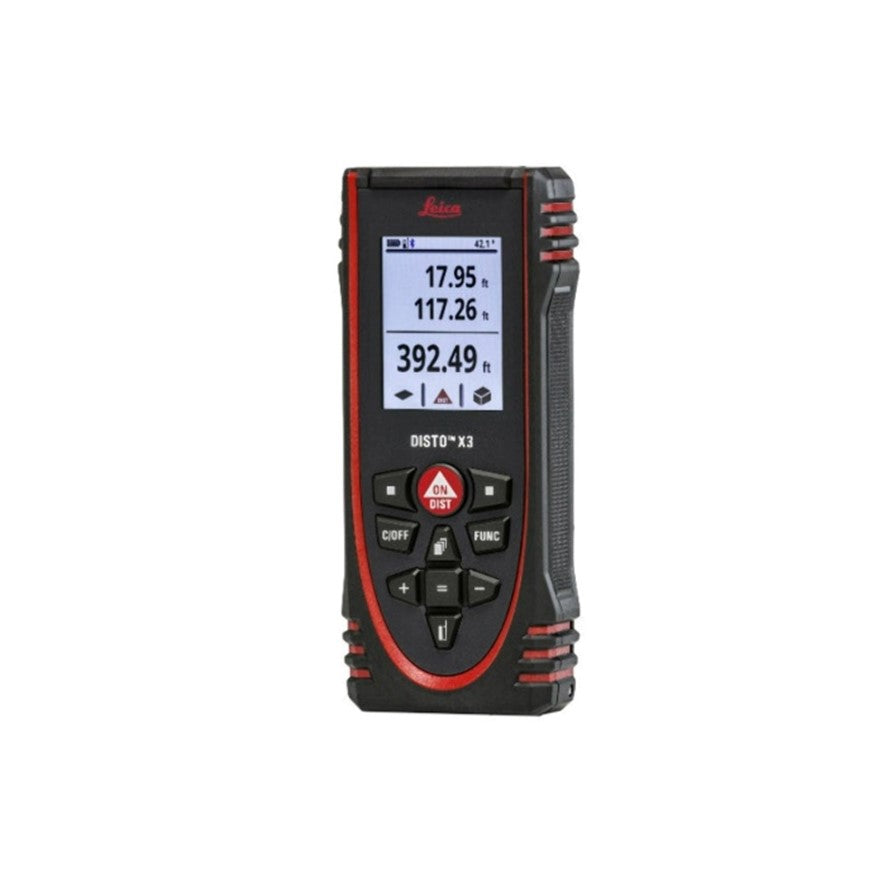

Leica Disto X3-1 Laser Distance Meter

Leica Disto X3-1 Laser Distance Meter

Regular price $528.00 AUD
Regular price $528.00 AUD Sale price $528.00 AUD
Sale Sold out

The Leica Disto X3-1 Laser Distance Measurer is perfect for tough construction sites and designed to make indoor laser measurements an easy task. It is drop tested up to 2m in height, water jet and dust protected to IP65 standards.

  • New Leica Disto technologies in combination with the Smart Room function of the Leica Disto Plan app allow you to quickly create scaled floor plans on your smartphone or tablet.
  • The optional Leica DST 360 transforms your hand-held laser device into a measurement station. It allows you to measure distances between any two points from one position.
  • Easy to use buttons and functions make working with the Disto X3-1 fast and intuitive.
  • The Disto X3-1 is designed to make indoor laser measurements an easy task. A holster, hand loop and batteries are included.
Optional Leica DST 360
Specifications
Distance measuring accuracy +/- 1.0mm
Range 0.05 up to 150m
Measuring units m, ft, in
X-Range Power Technology yes
Tilt sensor yes
Tilt sensor accuracy to the housing +/- 0.2°
Smart Base measuring range
Horizontal 360° for use with Leica DST 360
Vertical -64° to > 90° for use with Leica DST 360
Tolerance of P2P function for use with Leica DST 360 +/- 2mm at 2m, 5mm at 5m, 10mm at 10m
Levelling range 5° for use with Leica DST 360
Memory of last measurement 20
Free software for windows yes
Free App for iOS and Android yes
Smart Room function support yes
General data interface Bluetooth® Smart
Data interface for 3D point data  Bluetooth® Smart
Measurements per set of batteries  up to 4000 (reduced when used with Bluetooth)
Service life of batteries up to 8h (reduced when used with Bluetooth)
Multifunctional endpiece with automatic reference direction yes
Batteries 2 x AA alkaline
Protection class IP 65
2m drop tested yes
Dimensions 132 x 56 x 29mm
Weight with batteries 184g

Supplied with:

  • Carry Pouch
  • Hand Loop
  • Batteries
