Leica Disto D5 Laser Distance Meter Package

Name: Leica Disto D5 Laser Distance Meter Package
Brand: Geodetic
Price: 1430.0 AUD
Availability: InStock

$1,430.00 AUD

~~$1,430.00 AUD~~ $1,430.00 AUD

Sale Sold out

Product variants

Quantity

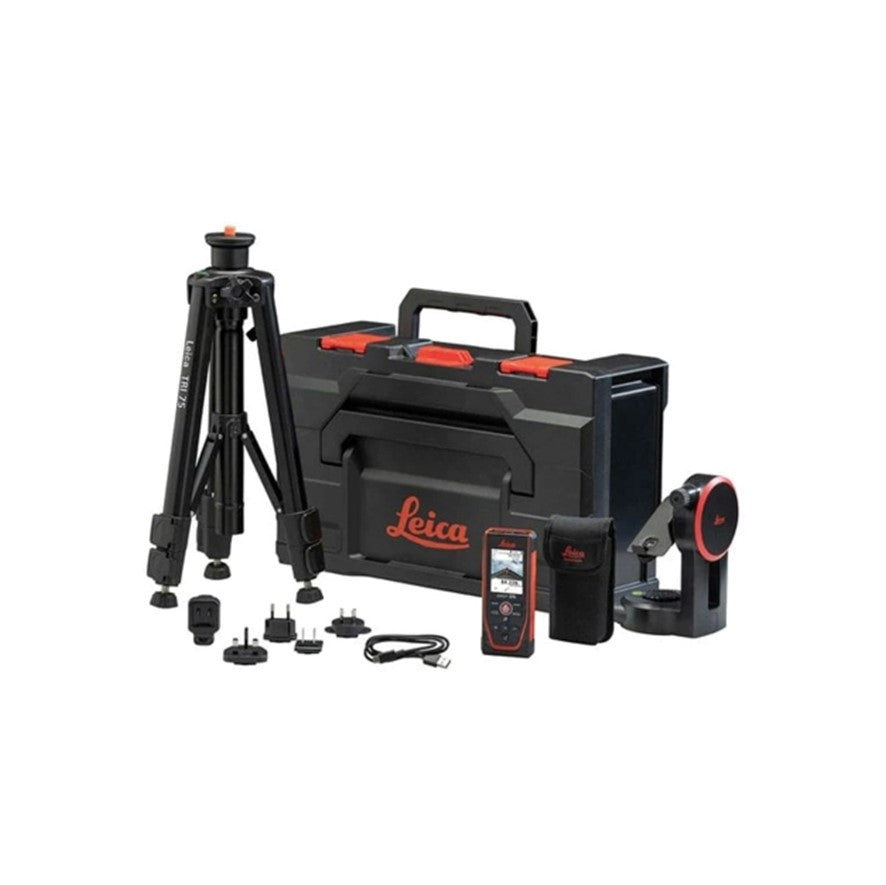

The Leica DISTO D5 with the FTA 360 adaptor and TRI75 Tripod is particularly suitable for distance measurements in outdoor areas. The Fine Tune Adjustment tripod bracket makes hitting your target easy and accurate. Simply toggle the vertical and horizontal adjustment knobs to set the laser dot exactly where you want it.

Precision without compromise

The contactless triggering of measurements ensures precision without compromise and solves a well-known problem, namely that the laser measure may move slightly when the measurement button is pressed, therefore no longer hitting the centre of the measured target. For contactless measurement, simply move your hand briefly through the laser beam to trigger the measurement.

Inexpensive Height Profile Measurement

With the Leica Disto D5 it is very easy to create a height profile in a landscape or calculate height differences in a building. The device is setup along the profile line you determine, and a reference point is measured to which the height differences should compare. The individual points are then measured. For each measured point, both the height difference and the distance to the reference point are recorded. The height profile can then be drawn from these values in your preferred CAD software.

Precisely Determine Horizontal Distances

In the “Smart Horizontal Mode” the DISTO simultaneously measurers the distance to the object and the tilt of the laser measure with only one click and then automatically calculates the precise horizontal distance. This function is very useful for precise horizontal measurements, especially over long distances, as the Disto does not need to be aligned horizontally. If construction material, walls, hedges or people are between the laser measure and the target, this function can be used as well. Simply measure over the obstacle and the exact horizontal distance appears on the display.

Perfectly Documented

With just a few clicks the measurement result can be sent via Bluetooth from the Disto Plan app, for creating and measuring floor plans and sketches. The sketches can then be exported as a PDF file or as a file suitable for CAD.

There are also a large number of segment-specific software applications for Windows, Android and IOS that support the use of the Disto.
