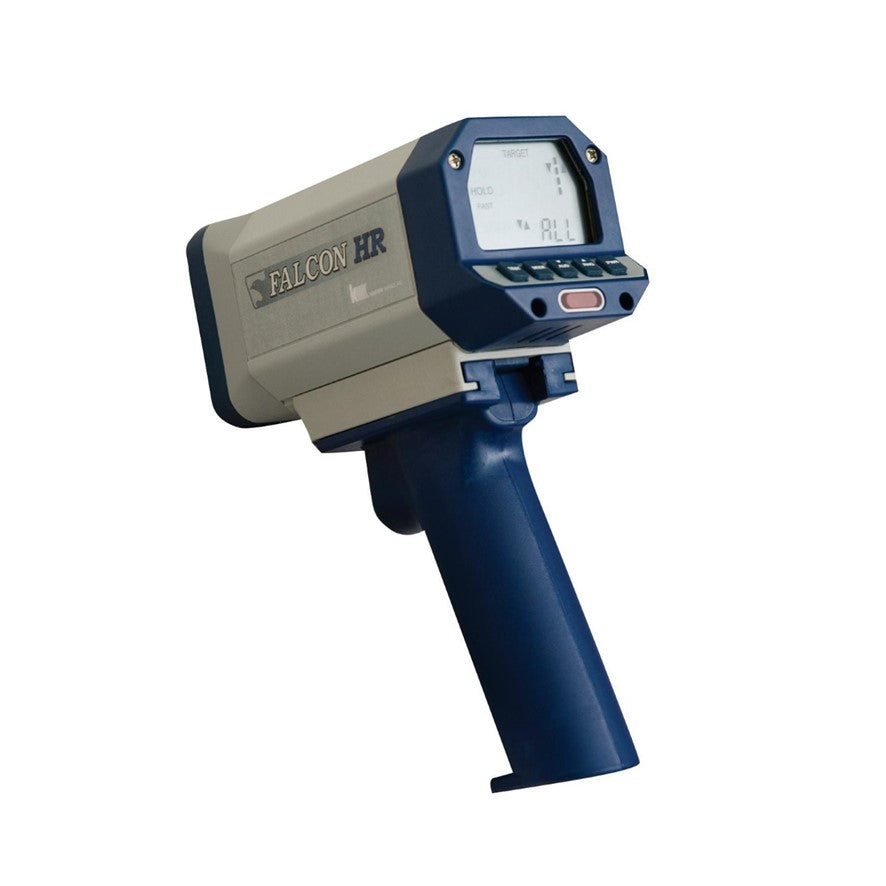

Kustom Signals Falcon HR Stationary Speed Gun

Kustom Signals Directional Radar Falcon HR Speed Gun High Performance - Low Cost

The Falcon HR K band stationary hand held radar is designed with innovative high performance, low-power directional technology. Falcon HR displays the target's direction to travel and isolates traffic in one direction.

Hand-held or dash mount options allow for flexible operation. Falcon HR offers the functionality of a high-end radar system at a fraction of the cost.

Key Features:

• Stationary Operation
• Digital Signal Processing (DSP) for tracking multible Targets
• Fastest Vehicle Mode
• Simple push button user interface
• Easily readable in direct sunlight
• LCD Graphical Display
• Supports tracking history after target lock with "Track through lock"
• Auto self-test with every locked target
• Long battery life and low transmitted power
• LED backlight for night time operation
• Corded Handle (standard)

Construction:

• Rugged aluminium housing prevents misalignement
• Solid-state integrated circuits and Digital Signal Processor
• High impact ABS handle houses power source
• Durable rubber bumpers protect front and rear panels

Specifications:
Frequency	K-band 24.125 GHz (+/- 100MHz)
Speed Accuracy	+/- 1 kph
Speed Range Stationary	8 - 321 kph
Beam Width	12° horizontal
Operating Temperature	-22°F to 140°F (-30°C - 60°C )
Power - Corded	9.0 VDC
Power Cordless	7.2 VDC NiMH
Weight	0.9kg with battery handle
IACP Conforming Product List



Available in three different Packages:

• Option 1: Falcon HR with corded handle to suit 12V power supply and carry case.
• Option 2: Falcon HR with corded handle and battery handle (can be used with alkaline or rechargeable batteries), carry case.
• Option 3: Falcon HR with corded handle and quick charger, AC adaptor, DC power cable, carry case

All options include Certificate

	Stationary	Moving	Moving same Direction
Stationary Operation	a	a	a
Direction Sensing/Selection	a	a	a
Fastest Vehicle Mode	a	a	a
Moving Opposite Mode		a	a
SMART Patrol Search		a	a
IR Remote Control		a	a
Moving Same-Direction Mode			a



Optional:

• 45 km Tuning Fork
• 80 km Tuning Fork

Click here to download pdf brochure
