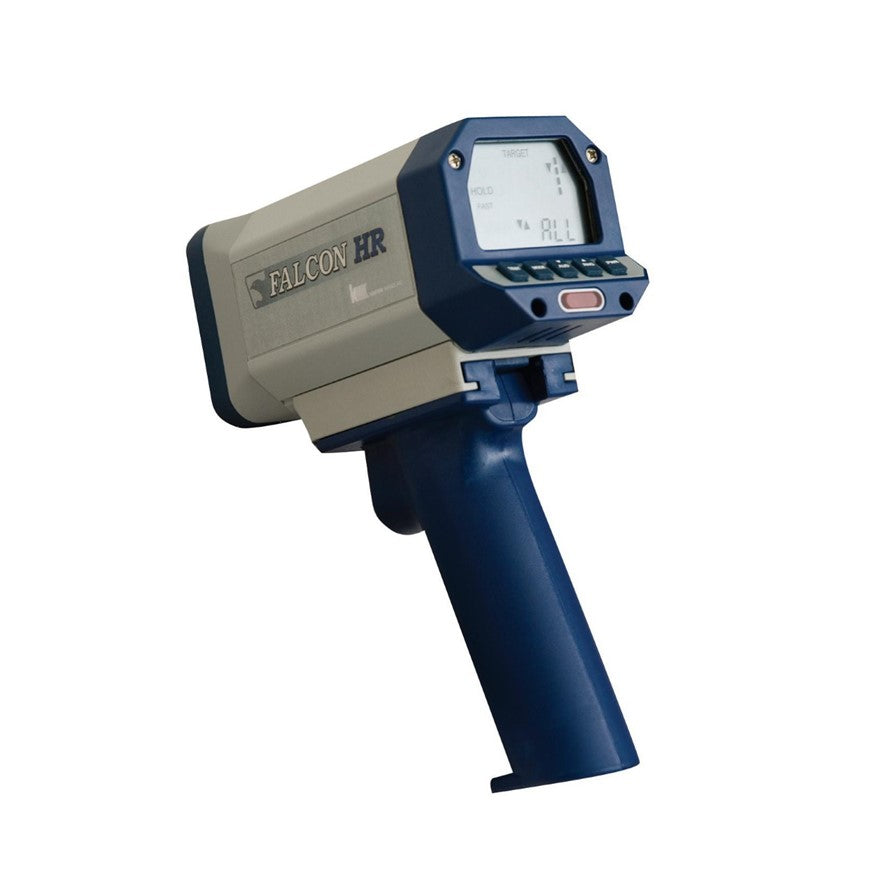

Kustom Signals Falcon HR Moving/Stationary & Same Direction Speed Gun

Kustom Signals Directional Radar Falcon HR Gun - High Performance - Low Cost

The Falcon HR K band hand held radar is designed with innovative high performance, low-power directional technology. Falcon HR displays the target's direction to travel and isolates traffic in one direction.

Hand-held or dash mount options allow for flexible operation. Falcon HR offers the functionality of a high-end radar system at a fraction of the cost.

Key Features:

• Stationary / Moving / Same Direction Mode
• Digital Signal Processing (DPS) for tracking multiple targets.
• Fastest Vehicle Mode
• Simple push button user interface with LCD graphics
• Supports tracking history after target lock with "track through lock"
• Auto self-test with every locked target
• Moving Opposite Operation
• Available in hand-held or as a dash mounted device.
• SMART Patrol Search Feature
• LED backlight adjusts to ambient light
• Wireless IR Remote Control
• Optional: Battery Handle



Construction:



• Rugged aluminium housing prevents misalignement
• Solid-state integrated circuits and Digital Signal Processor
• High impact ABS handle houses power source
• Durable rubber bumpers protect front and rear panels

Specifications:
Frequency	K-band 24.125 GHz (+/- 100MHz)
Speed Accuracy	+/- 1kph
Speed Range Stationary	8 to 321 kph
Speed Range Moving	8 to 193 kph
Speed Range Same Direction	5 kph to 65% of Patrol
Target Opposite Direction	32 to 321 kph
Beam Width	12°
Operating Temperature	-30°C - 60°C
Power - Corded	9.0 VDC
Power Cordless	7.2 VDC NiMH
Weight	0.9kg with battery handle
IACP Conforming Product List



Available in 2 different Packages:

• Option 1: Falcon HR Moving / Stationary & Same Direction mode with corded handle, carry case.
• Option 2: Falcon HR Moving / Stationary & Same Direction mode with corded handle, wireless remote, 7" dash mount & bracket, carry case.

All Options include Certificate

	Stationary	Moving	Moving same Direction
Stationary Operation	a	a	a
Direction Sensing/Selection	a	a	a
Fastest Vehicle Mode	a	a	a
Moving Opposite Mode		a	a
SMART Patrol Search		a	a
IR Remote Control		a	a
Moving Same-Direction Mode			a

Optional:

• 45 km Tuning Fork
• 80 km Tuning Fork
