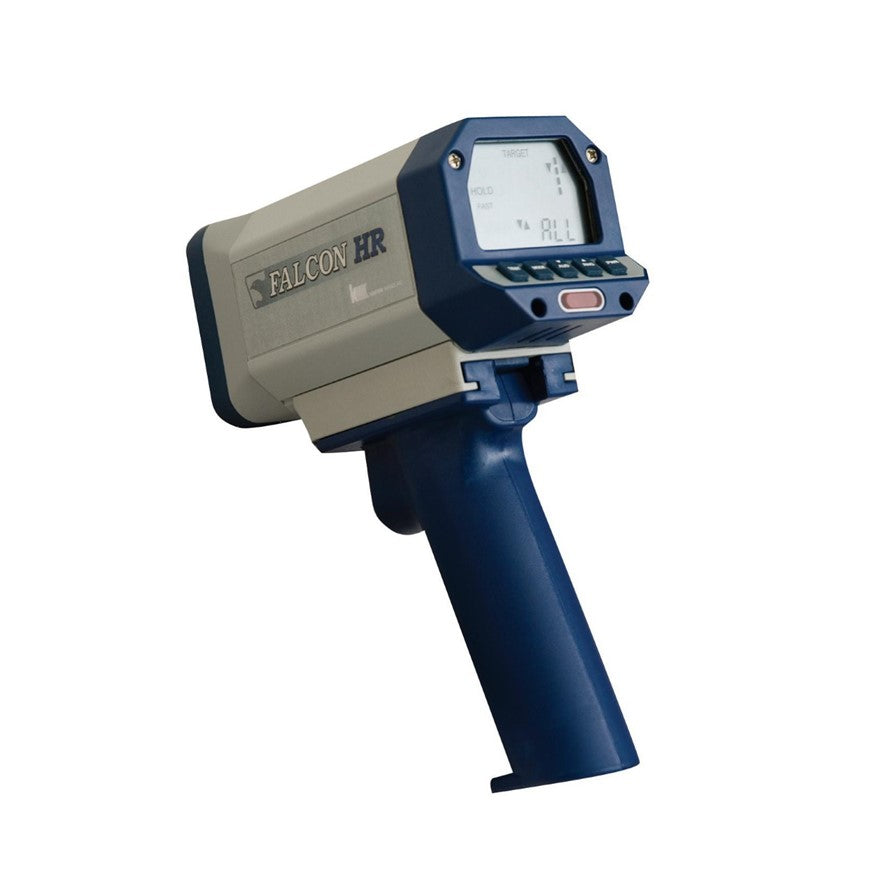

Kustom Signals Falcon HR Moving / Stationary Speed Gun
Kustom Signals Falcon HR Moving / Stationary Speed Gun
Kustom Signals Directional Radar Falcon HR Speed Gun - High Performance - Low Cost
The Falcon HR K band hand held radar is designed with innovative high performance, low-power directional technology. Falcon HR displays the target's direction to travel and isolates traffic in one direction.
Hand-held or dash mount options allow for flexible operation. Falcon HR offers the functionality of a high-end radar system at a fraction of the cost.
Key Features:
- Stationary / Moving Operation
- Digital Signal Processing (DSP) for tracking multiple targets
- Fastest Vehicle Mode
- Simple push button user interface with LCD graphics
- Supports tracking history after target lock with "track through lock"
- Auto self-test with every locked target
- Moving Opposite Operation
- Available in hand-held or as a dash mounted device.
- SMART Patrol Search Feature
- LED backlight adjusts to ambient light
- Wireless IR Remote Control
- Optional: Battery Handle
Construction:
- Rugged aluminium housing prevents misalignement
- Solid-state integrated circuits and Digital Signal Processor
- High impact ABS handle houses power source
- Durable rubber bumpers protect front and rear panels
Specifications: | |
Frequency | K-band 24.125 GHz (+/- 100MHz) |
Speed Accuracy | +/- 1 kph |
Speed Range Stationary | 8 to 321 kph |
Speed Range Moving | 8 to 193 kph |
Beam Width | 12° |
Operating Temperature | -30°C - 60°C) |
Power - Corded | 9.0 VDC |
Power Cordless | 7.2 VDC NiMH |
Weight | 0.9kg with battery handle |
IACP Conforming Product List |
Available in 2 different Packages:
- Option 1: Falcon HR Moving & Stationary with corded handle to suit 12V power supply and carry case.
- Option 2: Falcon HR Moving & Stationary with corded handle, wireless remote, 7" dash mount & bracket, carry case.
All options include Certificate
Stationary | Moving | Moving same Direction | |
Stationary Operation | a | a | a |
Direction Sensing/Selection | a | a | a |
Fastest Vehicle Mode | a | a | a |
Moving Opposite Mode | a | a | |
SMART Patrol Search | a | a | |
IR Remote Control | a | a | |
Moving Same-Direction Mode | a |
Optional:
- 45 km Tuning Fork
- 80 km Tuning Fork
Click here to download pdf brochure
